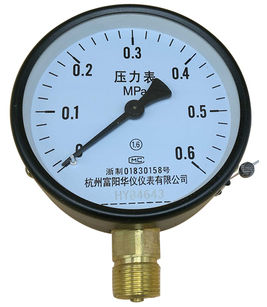

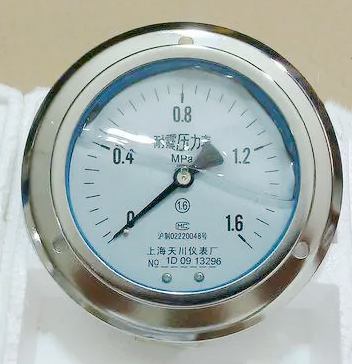

Water pressure gauge

Time:2024-06-15   Nums:3672

2345截图20200924094222.png    QQ图片20220922152825_副本.png

General (spring tube type) pressure gauge housing nominal diameter size: 40, 60, 100, 150, 200;

Accuracy grade: 1.0, 1.6, 2.5, 40.;

Measuring range limit (MPa): 0~0.6 , 1~1.0 , 0~1.6 , 0~2.5 , 0~4 , 0~6 .


The working principle of the water pressure gauge: the water pressure gauge passes through the elastic deformation of the sensitive components (Bourdon tube, bellows, bellows) in the watch, and then the pressure deformation is transmitted to the pointer by the conversion mechanism of the movement in the watch, causing the pointer to rotate. Display pressure.


Yiphee Electric Furnace Co.,Ltd specializes in the production of induction furnace & Water pressure gauge.Tel(WhatsApp):+86-13450756789, yiphee@yiphee.cn
